Digital I/O module SIOS
EthernetCANopenCAN

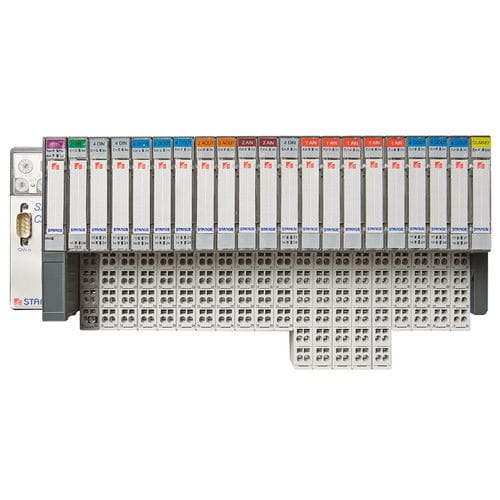

Digital I/O module - SIOS - Stange Elektronik - Ethernet / CANopen / CAN
Digital I/O module - SIOS - Stange Elektronik - Ethernet / CANopen / CAN
Digital I/O module - SIOS - Stange Elektronik - Ethernet / CANopen / CAN - image - 2
Digital I/O module - SIOS - Stange Elektronik - Ethernet / CANopen / CAN - image - 3
Add to favorites
Compare this product


Characteristics

Signal type
digital
Bus
Ethernet, CANopen, CAN
Type
remote, network

Description

SIOS Features SIOS is a flexibly configured remote CAN peripheral device, adaptable to application, intelligent and future proof. A SIOS peripheral consists of at least one CAN gateway and one power module. The gateway and further I/O modules are powered by the first power module. SIOS modules consist of an I/O card and clamping module for wiring. Wiring takes place without tools via spring contacts. The modules are hot-swappable and can therefore be changed when energized. The interchanging of modules is impossible due to the mechanical coding. There are SIOS gateways with different bus systems: SIOS-CAN as CAN bus systems and SIOS-TCPIP as an Ethernet bus system (in progress). A node consists of a maximum of 64 modules. The maximum number of nodes is 99. Because of the large number of nodes and the maximum number of 64 modules, the complete CANopen protocol can be utilized fully. Up to 25,344 digital I/Os or analogue values can be used in the maximum configuration per network, limited to one type of module. SIOS-Features: Flexibly configured remote CAN peripheral device A peripheral consists of one CAN gateway and one power module Adjustment of desired digital/analogue I/Os by expandable I/O modules (maximum of 64 modules), consisting of I/O card and clamping module Spring-type terminal wiring Modules are hot-swappable and can therefore be changed when energized Interchanging of the I/O cards impossible due to mechanical coding gateway

Catalogs

Other Stange Elektronik products

Remote Peripherals
