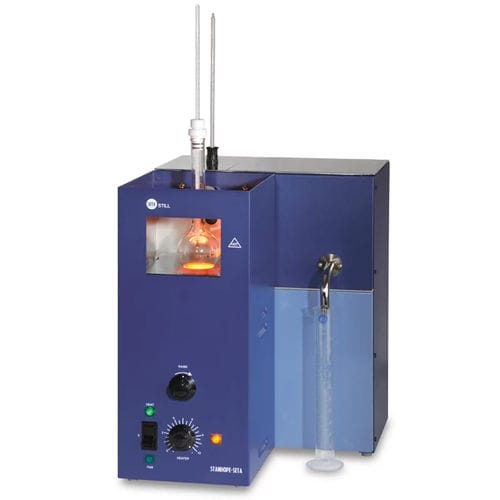

Petroleum product distillation unit Setastill

The Setastill Distillation unit is a bench-top instrument used to carry out atmospheric distillation of petroleum products and liquid fuels to determine boiling range characteristics. The unit can distil samples from ambient temperature up to 400 °C and consists of an electrically heated distillation enclosure with a cooling fan and an integral condenser. The steel distillation enclosure houses the distillation flask which is supported by a drop-in ceramic support board (accessory) mounted to a platform that is adjustable for height. Features • Three way heat / fan switch • Adjustable height platform • Toughened glass window • Ceramic glass flask support boards • High efficiency quartz tube heaters with gold reflectors • Observation window • Optional back lighting unit for receiver • Optional blower fan for cool-down after tests Feature information Quartz enclosed heating elements are also attached to the platform, and are powered by a solid-state energy regulator and calibrated control. A cooling fan is installed in the rear of the distillation unit to reduce cooling time between distillations. A spillage collection tray with outlet is mounted beneath the heaters. The condenser unit is attached to the distillation unit, and may be used with either a static fill of coolant or a laboratory cooling supply. Housed within the condenser unit is a thermally-insulated, stainless steel coolant tank, fitted with a permanently installed condenser tube. A drain tap and an overflow outlet are mounted on the rear of the unit. DISTILLATION RANGE: Ambient to 400 °C VOLTAGE RANGE: 110/120 V or 220/240 V, 50/60 Hz (switchable) POWER: 1000 W maximum
