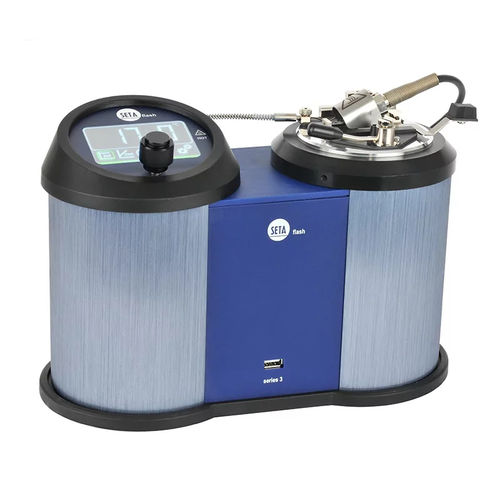

Flash point tester Setaflash 3e series

for paintfor crude oilfor petroleum products

The Setaflash Series 3e closed cup flash point tester is a compact, bench top/portable instrument used to carry out ‘flash/no flash’ tests and determine flash point temperatures. The Series 3e can perform tests at temperatures ranging from 0 to 300 °C (with the 13870-0 Seta Cooling Module allowing temperatures below ambient). Operated by a touchscreen, icons guide you through the simple test procedure, with a test taking less than 2 minutes with just 2 or 4 ml of sample required. Up to 10,000 test results can be saved in the instruments internal memory which can be saved and transferred via USB port for data analysis. Features • Electric ignition • Ambient to 300 °C • Small sample size • Under 2 minute test • Simple operation • Compact, rugged, portable design • Suitable for unknown samples using ramp mode • Automated flash detection • Automatic barometric pressure correction • Colour touchscreen • USB port and result storage Ease of use: All functions on the Series 3 including test parameters, instrument status and test results are accessed via the touchscreen display and push button. An audible prompt sounds when a flash is achieved and an automatic flash detector enhances repeatability. Calibration and verification: Calibration of the Series 3 can be performed in the field, eliminating the costs and time associated with sending the instrument to a service centre. Service and maintenance: The rugged design ensures minimal operational maintenance in needed. Supplied with: 2 ml syringe, ignitor, Allen key, mains lead, quick start guide and instruction manual
