Cryostat 93531-8

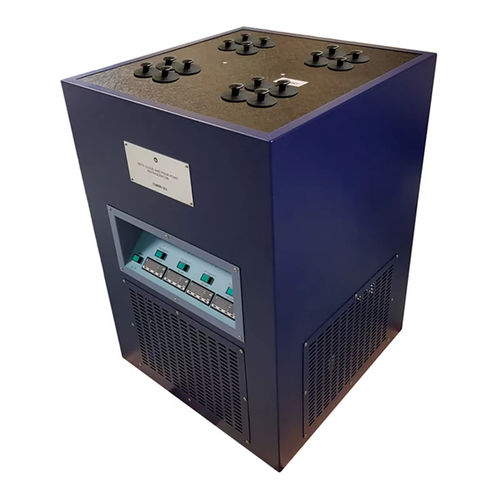

The Seta Cloud and Pour Point Cryostat has four 2 litre compartments which are independently temperature controlled and can accommodate four Air Wells. Three compartments have a temperature range of ambient to -34 °C and one has a low temperature compartment -34 to -51 °C. The lid is electrically heated to prevent the formation of ice and condensation. Refrigeration is accomplished by a two stage CFC free system. Features • Four individually temperature controlled compartments • Four air wells in each compartment • CFC free refrigeration system • Heated anti-condensation lid • Non flammable refrigerants, compliant with F-Gas Regulation Supplied with; 16 test jars (each comprising graduated glassware, thermometer cork, insulating gasket and disc), a compartment thermometer and instruction manual. Note: Due to the low operating temperature of this bath, it is recommended that the compartments are filled with Butyl Glycol. COMPARTMENT QUANTITY: 3 + 1 low temperature COMPARTMENT VOLUME: 2 litre TOTAL TEST POSITIONS: 16 TEMPERATURE RANGE: Ambient to -34 °C (x3) -34 °C to -51 °C (x1) AMBIENT TEMPERATURE RANGE: 15 °C to 32 °C COOL DOWN TIME (SINGLE COMPARTMENT): Approx 2 hours 30 minutes at an ambient of 23 °C (to -51 °C) REFRIGERANT: CFC free, first stage R134a, second stage R452a VOLTAGE: 110/120 V, 60 Hz 220/240 V, 50 Hz POWER: 1.8 kW SIZE (HXWXD): 95 x 63 x 63 cm WEIGHT: 115 kg
