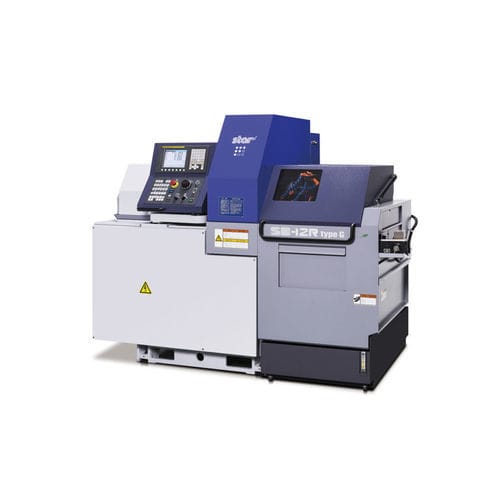

CNC Swiss lathe SB-12R Type G

multi-spindle4 toolsfor small parts production

Popular 12mm machine for manufacturing small diameter components for use in a variety of industries Modular machine design flexibility greatly benefits the machining of small diameter parts Ability to switch between Guide Bush and Non Guide-Bush Modes improves machining efficiency Main spindle with 17 tool positions extends manufacturing possibilities Fully independent sub-spindle with driven tool capability increases the amount of overlapped operations that can be carried out Standard Accessories and Functions Operation panel 8.4” color LCD display Pneumatic unit Automatic centralized lubrication unit Coolant level detector Door interlock system Broken cutoff tool detector Parts ejection detector Drive unit for revolving guide bush Revolving guide bush unit Main/Sub collet C-axis control (Main/Sub) Spindle clamp unit (Main/Sub) Tool holder 4-spindle cross drilling unit 4-spindle sleeve holder Back 4-Spindle unit Air purge for revolving guide bush Air purge for main spindle Sub spindle air purge unit Sub spindle air blow unit Work light Leakage breaker Optional Accessories and Functions Coolant flow detector Water removal unit Beacon Parts conveyor Parts receptacle in the machine Parts separator unit A Main spindle inner tube 5-spindle cross drilling unit Cartridge-type 5-spindle cross drilling unit Cartridge-type 5-spindle high-speed cross drilling unit Drive unit for power-driven attachment B Parts ejector (Air cylinder type) Parts ejector (Spring type) Parts ejector with guide tube Parts stopper unit Coolant unit (6.9MPa/2.5MPa) Coolant unit signal cable Coolant unit power cable Coolant valve Coolant pipings Automatic bar feeder interface
