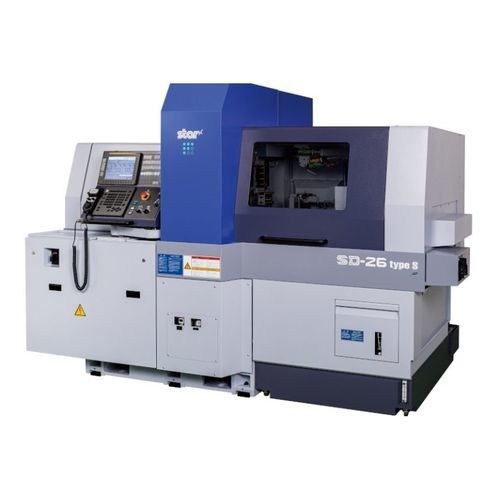

CNC Swiss lathe SD-26 Type S

4-spindle4 toolsmilling

The new SD-26 Swiss-type automatic lathe was developed specifically to meet the complex, small parts machining needs of up to 1” (26mm) diameter parts. Meeting the diverse manufacturing needs across multiple industries. Double B-axis programmable units: B1 axis – 4-spindle milling unit with 135° of travel capable of programming simultaneous 5-axis control; B2 axis – provides identical capability for various tooling units including the industry’s first twin-thread whirling unit incorporating a brake to maintain rigidity while machining. Reconfigured machine structure for improved access to the guide bush and tool post A function for batch input/output of NC programs together with related information such as offset data Various help functions including a command help function that allows you to check the various commands on the NC screen Standard Accessories and Functions 10.4-inch color LCD display Pneumatic unit Coolant level detector Automatic centralized lubrication unit Door Interlock unit with Locking System Cs contour control （Main/Sub ） Spindle clamp unit （Main/Sub ） Cooling unit (Main spindle/ Drive unit for gang tool post) Revolving guide bush unit Drive unit for revolving guide bush Air purge unit for revolving guide bush Main/Sub collet sleeve Gang-type 5 station tool holder □16 mm 4 Spindle cross drilling unit cartridge 4 Spindle opposing unit with B axis control function Second B-axis unit clamp unit 5 spindle sleeve holder 2 spindle sleeve holder Broken cut-off tool detector Back attachment 8 spindle back working unit with Y axis control function Drive unit for 8 spindle back working unit Parts separator Parts conveyor Sub spindle air purge unit
