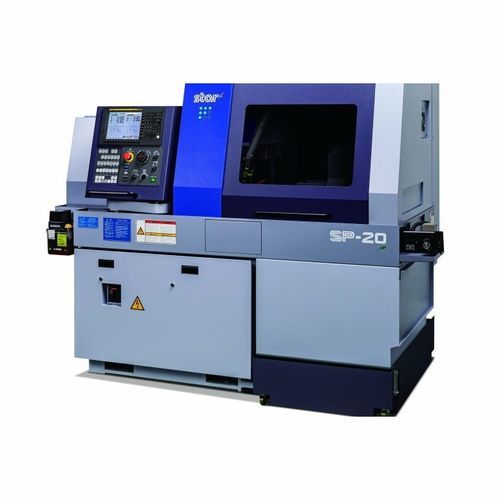

CNC Swiss lathe SP-20

multi-spindle8 toolsdrilling

Star’s newest model, the SP-20, offers substantial versatility in a small-scale footprint and modest price, with the capability of machining 1-inch diameter material. This machine utilizes a gate-shaped tool post designed to encircle the guide bush for front side machining equipped with 8 turning tools, 5-position sleeve holder and 7-spindle power-driven tool unit with 5 cartridge positions for modular units. A wide array of these modular units such as Cross Drilling, Front Drilling, Slotting, Thread Whirling and Polygon Machining enhances the range of machining options. Standard Accessories and Functions Operation panel 10.4-inch color LCD display Pneumatic unit Coolant level detector Automatic centralized lubrication unit Door interlock system Broken cutoff tool detector Water removal unit Cs contouring control (Main/Sub) Spindle clamp unit (Main / Sub) Revolving guide bush unit Drive unit for revolving guide bush Air purge for revolving guide bush Main / Sub collet Tool holder (7-station or 8-station) Sleeve holder (4-spindle or 5-spindle) 7-spindle cross drilling unit Sub spindle air purge unit Sub spindle air blow unit 4-spindle backworking unit Drive unit for power-driven attachment (4-spindle backworking unit) Work light Leakage breaker Optional Accessories and Functions Torque up specification (main/sub) Coolant flow detector Beacon Parts conveyor Built-in stocker Product separator system, A-type Main spindle inner tube Parts ejector with Spring type Parts ejector (Air cylinder type) Parts ejector with guide tube Parts stopper unit Coolant unit (2.5MPa / 6.9MPa) Coolant unit signal cable Coolant unit power cable Coolant valve (2.5MPa / 6.9MPa) Coolant pipings
