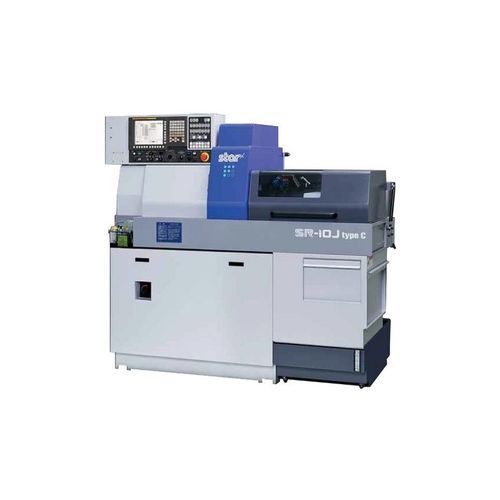

CNC Swiss lathe SR-10J Type C

3-spindle4 toolsfor small parts production

High performance machine with enhanced capability and operability for machining small diameter parts C-axis control (with clamp) for both the main and sub spindle enhances secondary machining Standard manual pulse generator facilitates installation Standard Accessories and Functions Operation panel 10.4 inch color LCD display Pneumatic unit Automatic centralized lubrication unit Coolant level detector (lower limit) Door interlock system Broken cutoff tool detector Parts ejection detector Main / Sub collet C-axis control (Main / Sub) Spindle clamp unit (Main / Sub) 6-station tool holder (8mm) 3-spindle cross drilling unit 4-Spindle sleeve holder Back 4-spindle unit Drive unit for power-driven attachment B Sub spindle air purge unit Sub spindle air blow unit Work light Leakage breaker Optional Accessories and Functions Coolant flow detector Water removal unit Warning light Parts conveyor Parts separator unit A Main spindle inner tube 6mm Main spindle inner tube Guide bush unit Stationary guide bush unit Drive unit for revolving guide bush Rotary guide bush unit Rotary magic guide bush unit Air purge for revolving guide bush Spindle 15 degree indexing unit Automatic bar feeder interface Compliant with the RS-232C interface Manual pulse generator Transformer Safety relay module version
