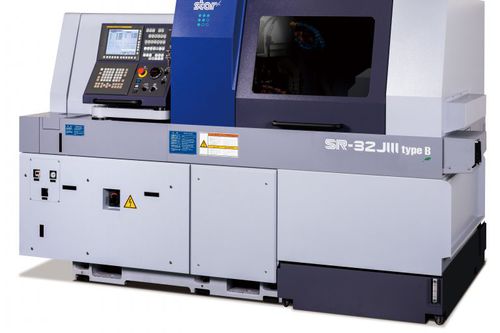

CNC Swiss lathe SR-32JIII Type A/B

rigidmulti-spindle4 tools

The SR-32JIII Type B modular design with slanted guide way increases rigidity, improves accuracy for stable production. Eight (8) stations back working unit with Y axis provides flexibility in overlapping machining requirements. Rigid machine construction enables continuous machining with superior accuracy over extended periods of time. The SR-32JIII is designed to work with or without guide bushing which is another option to further enhance versatility and flexibility while machining. Standard Accessories and Functions Operation panel 10.4 inch color LCD display Manual pulse generator Pneumatic Unit Hydraulic Unit Coolant Level Detector Automatic centralized lubrication unit Door interlock system C's contouring control (main/sub) Spindle clamp unit (main/sub) Spindle cooling unit Revolving guide bush unit Drive unit for revolving guide bush Air purge for revolving guide bush Main/Sub collet 6-station tool holder - 16mm Cross drilling unit (Cartridge type - 5-spindle/6-spindle, special tool for cross drilling unit - 6-spindle) 5-spindle sleeve holder Broken cutoff tool detector Backworking attachment Back 6-spindle unit (Type A) 8-Spindle backworking unit with Y-axis control function (Type B) Drive unit for power-driven - 8-spindle backworking unit (Type B) Sub spindle air purge unit Parts conveyor Work light Leakage breaker Optional Accessories and Functions Coolant flow detector Water removal unit Oil mist filter Beacon Main spindle inner tube Rotary magic guide bush unit Non-guide bush type Feed arrow steady rest Drive unit for power-driven attachment B (Type A only) Parts ejector (spring type) Parts ejector (air cylinder type) Parts ejector with guide tube
