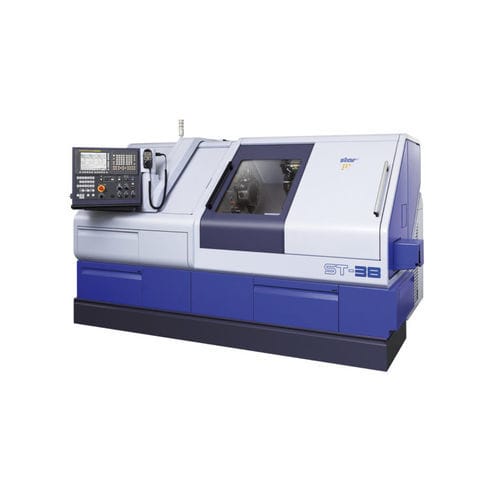

CNC Swiss lathe ST-3810 toolsfor automotive applicationsfor deep drilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of tool stations
- 10 tools
- Applications
- for deep drilling, for automotive applications, for aerospace applications, for complex parts
- Associated function
- drilling, tapping
- Diameter
38 mm
(1.5 in)- Spindle speed
5,700 rpm, 7,000 rpm
(35,814.156 rad.min-1, 43,982.297 rad.min-1)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
2.7 kW, 4 kW, 7.5 kW, 11 kW
(3.7 hp, 5.4 hp, 10.2 hp, 15 hp)- Overall lenght
1,859 mm
(73 in)- Overall width
3,477 mm
(137 in)- Overall height
1,865 mm
(73 in)- Weight
6,250 kg
(13,779 lb)
Description
Triple turret design is ideally suited for complex machining of large diameter components for the medical, automotive and aviation industries
Simultaneous machining achieved by opposed twin turret design tool post dramatically reduces machining time and independent
Equipped with Star Motion Control System for higher accuracy and easier operability
Standard Accessories and Functions
Operation panel 10.4 inch color LCD display
Hydraulic Unit
Pneumatic Unit
Automatic centralized lubrication unit
Coolant level detector
Door interlock system
Broken cutoff tool detector
Drive unit for revolving guide bush
Revolving guide bush unit
Main/Sub collet
C-axis control (Main/Sub)
Spindle clamp unit (Main/Sub)
Main spindle cooling unit
Coolant chiller
Drive system for power-driven attachment (turret)
Air purge for revolving guide bush
Sub spindle air purge unit
Parts separator
Parts conveyor
Automatic bar feeder interface
Coolant level detector (lower limit)
High pressure coolant interface
Work light
Leakage breaker
Optional Accessories and Functions
Coolant flow detector
Water removal unit
Beacon
Rotary magic guide bush unit
For pneumatic unit rotary magic guide bush
Parts ejector (Air cylinder type)
Parts ejector (Spring type)
Parts ejector with guide tube
Parts stopper unit
Coolant unit 6.9MPa/2.5MPa/0.1MPa)
Coolant valve
Coolant pipings
Manual pulse generator
Tool presetter
