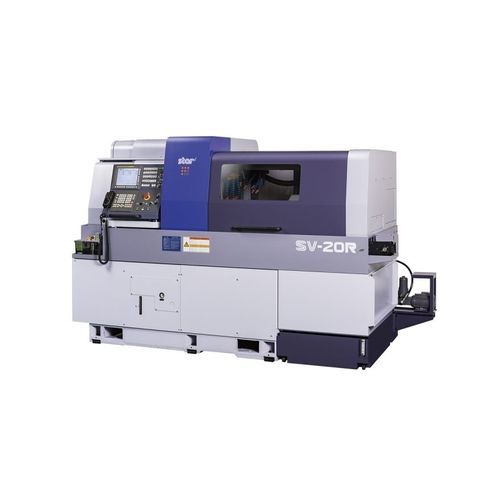

CNC Swiss lathe SV-20R

multi-axismulti-spindle8 tools

SV-20R delivers a wide range of machining operations for producing intricate and complicated parts for medical and aerospace industries. Multi-axis machine with multi-series control for high machine productivity Flexible tooling layouts for endless variations of complex machining “Super position mode” enables multiple tools to work simultaneously 8-spindle backworking unit with Y-axis control accommodates a variety of tools for overlapping operations Maximum machining diameter 20 mm Guide bush and Non-guide bush switching function Star Motion Control reduces idle time Standard Accessories and Functions Power electric & Operation panel & 10.4-inch color LCD Pneumatic unit Hydraulic unit Spindle cooling unit Automatic centralized lubrication system (with level detecting function) Cutting oil level (lower limit) detecting unit Door interlock system Broken cutoff tool detector C-axis control (Main／Sub) Spindle clamp unit (Main / Sub) Drive unit for revolving guide bush Revolving guide bush unit Main／Sub collet Air purge for revolving guide bush Sub spindle air purge unit Tool holder (Gang-type tool post) 5-spindle milling unit (Gang-type tool post) Drive system for power-driven attachment (Turret-type tool post) Back 8-Spindle unit Drive system for power-driven attachment B (Back 8-spindle unit) Parts conveyor Automatic bar feeder interface RS-232C interface Work light (for cutting chamber and headstock chamber) Leakage breaker Optional Accessories and Functions Coolant flow detector Parts ejection detector Water removal unit Oil mist filter Beacon Non-guide bush type Rotary magic guide bush unit For pneumatic unit rotary magic guide bush Main spindle inner tube
