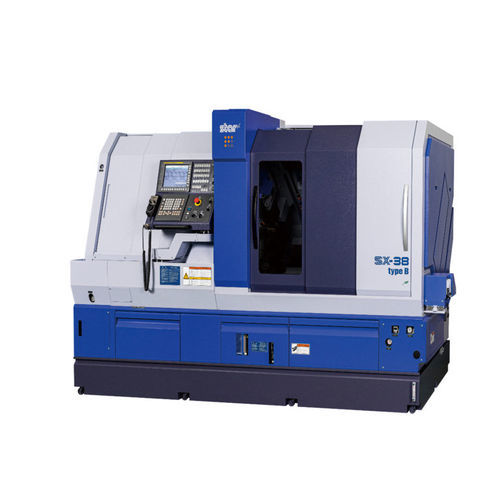

CNC Swiss lathe SX-38 Type A/B

12-axisslant bedmulti-spindle

The Star SX-38 Type A/B, a 12-axis compact Swiss-style machine with slant-bed construction, maximizes productivity for difficult-to-machine materials up to 42mm diameter. The capability to keep 80 tools resident with high horsepower motors means heavy metal removal rates and flexibility. B-axis surfacing with up to 135 degree travel handles up to 0.5″ diameter tooling. This high-functioning, large-diameter model – with gang-type and turret-type tool posts – serves the precision machining requirements demanded by the medical, automotive, and aviation industries. Standard Accessories and Functions Operation Panel 10.4 inch color LCD Display Manual pulse generator Hydraulic unit Pneumatic unit Automatic lubrication unit Coolant level detector Door interlock system Broken cutoff tool detector Drive unit for revolving guide bush Revolving guide bush unit Air purge unit for revolving guide bush Main/Sub collet C-axis control (Main/Sub) Spindle clamp unit Gang-type tool holder for fixed 4 tools (20mm: 1 tool, 16mm: 3 tools) 4-spindle counter face milling unit with B-axis control function B-axis clamp unit 10-position turret-type tool post Turret-type tool post tool drive unit (Type B - one-position tool drive mechanism) Sub spindle air purge unit Drive system for power-driven attachment (8-spindle back working unit) 8-spindle back working unit tool drive unit Spindle cooling unit Parts conveyor Automatic bar feeder interface LAN/RS-232C interface Work Light Optional Accessories and Functions Coolant flow detector Parts ejection detector Water removal unit Beacon Non-guide bush type Rotary magic guide bush unit For pneumatic unit rotary magic guide bush
