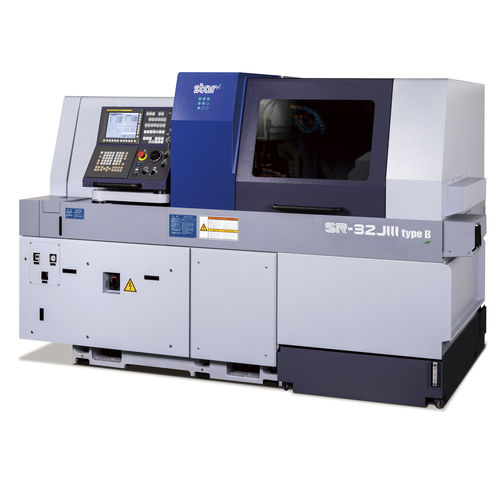

CNC Swiss lathe SR-32J III5-axis6-axismulti-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 5-axis, 6-axis
- Number of spindles
- multi-spindle
- Diameter
32 mm
(1.26 in)- Rapids on X
35,000 mm/min
(23 in/s)- Rapids on Z
35,000 mm/min
(23 in/s)- Nominal power
2 kW, 4 kW
(2.7 hp, 5.4 hp)- Weight
4,100 kg
(9,039 lb)
Description
Increased flexibility in response to market demands for greater capability for large diameter machining.
-A unique slanted dovetail slideway structure for insreased rigidity of the tool post.
-Type A is equipped with a 6-spindle type and Type B is equipped with Y-axis control / 8-spindle type backworking tool post.
-The guide bush and non-guide bush are interchangeable. The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
Catalogs
No catalogs are available for this product.
See all of Star Micronics Machine Tools‘s catalogsOther Star Micronics Machine Tools products
