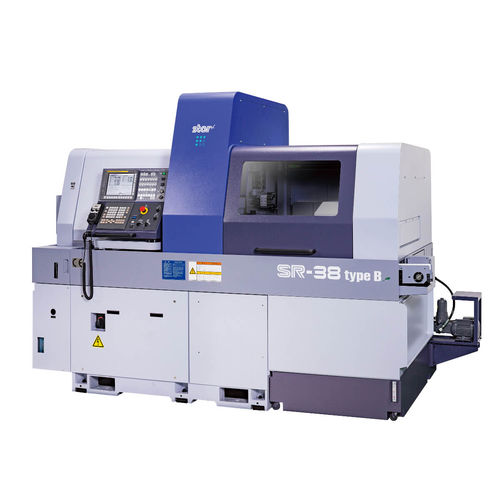

CNC Swiss lathe SR-38vertical3-axismulti-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 3-axis
- Number of spindles
- multi-spindle
- Diameter
38 mm
(1.5 in)- Nominal power
2 kW, 4 kW
(2.7 hp, 5.4 hp)- Overall lenght
2,740 mm
(108 in)- Overall width
1,315 mm
(52 in)- Overall height
2,120 mm
(83 in)- Weight
4,300 kg
(9,480 lb)
Description
Complex machining for large diameter workpieces now aim for higher functionality,productivity and accuracy.
A balance-cut function by X1/X3 axis simultaneous control for high accuracy and high efficiency.
This machine employs a power-driven tool unit with B-axis control function.
The guide bush and non-guide bush are interchangeable. The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
