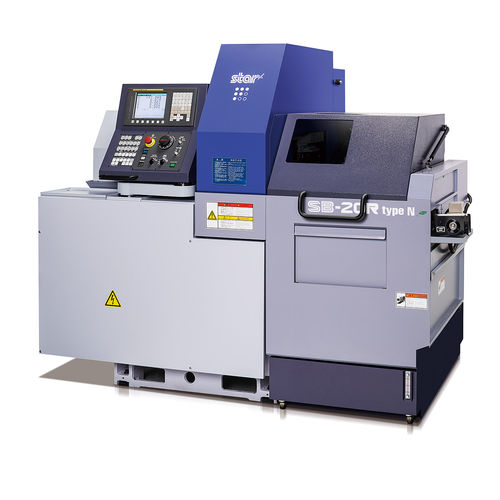

CNC automatic lathe SB-20R type Nvertical2-axis3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis, 3-axis
- Number of spindles
- multi-spindle
- Diameter
20 mm
(0.79 in)- Rapids on X
35,000 mm/min
(23 in/s)- Rapids on Z
35,000 mm/min
(23 in/s)- Nominal power
1 kW
(1.4 hp)- Overall lenght
2,070 mm
(81 in)- Overall width
1,177 mm
(46 in)- Overall height
1,750 mm
(69 in)- Weight
1,700 kg
(3,748 lb)
Description
The gang-type tool post model exclusively designed for non-guide bush suited to short parts machining.
The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
A unique slanted dovetail slideway structure for insreased rigidity of the tool post.
4 types of tool posts are available to allow for a tooling layout most suited to the required machining applications.
