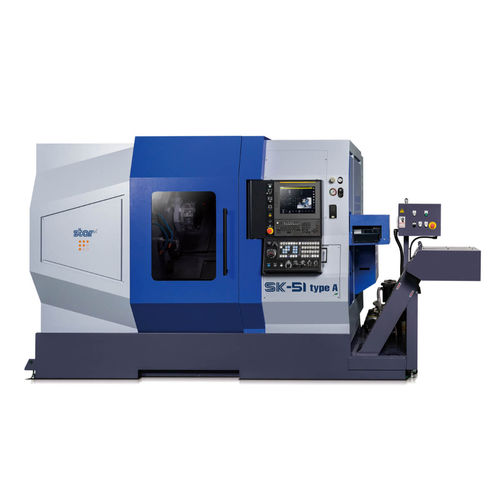

CNC automatic lathe SK-51 type A3-axis2-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of spindles
- 2-spindle
- Diameter
51 mm
(2.01 in)- Maximum part length
125 mm
(5 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
40,000 mm/min
(26 in/s)- Nominal power
5 kW, 8 kW
(6.8 hp, 10.9 hp)- Overall lenght
2,800 mm
(110 in)- Overall width
2,070 mm
(81 in)- Overall height
2,130 mm
(84 in)- Weight
6,600 kg
(14,551 lb)
Description
Fixed-headstock model with 2 spindle and 2 turret type tool post.
Simultaneous machining on the 2 turret-type tool posts equipped with 3-axes control reduces the cycle time for front/rear side machining.
The main and sub spindles can be mounted with power chuck.
