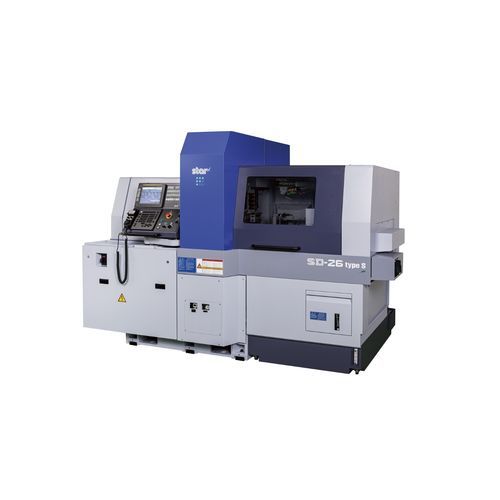

CNC Swiss lathe SD-26 type Smulti-spindledrillingdrilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of spindles
- multi-spindle
- Applications
- drilling
- Associated function
- drilling
- Diameter
Min.: 8 mm
(0.31 in)Max.: 26 mm
(1.02 in)- Spindle speed
1,000 rpm, 8,000 rpm
(6,283.185 rad.min-1, 50,265.482 rad.min-1)- Axe X
36 mm
(1 in)- Axe Z
36 mm
(1 in)- Rapids on X
36 m/min
- Nominal power
2.2 kW, 3 kW, 5.5 kW, 7.5 kW
(3 hp, 4.1 hp, 7.5 hp, 10.2 hp)- Overall lenght
2,550 mm
(100 in)- Overall width
1,300 mm
(51 in)- Overall height
1,995 mm
(79 in)- Weight
3,600 kg
(7,937 lb)
Description
A lineup of 4 types that accurately cover the needs of the 8-dia. to 26-dia. volume zone. Realizes optimal tooling for a variety of machining conditions.
Realizes diverse cross-machining with a wealth of tool units.
The machine has been reconfigured for improved accessibility to the guide bush and tool post.
