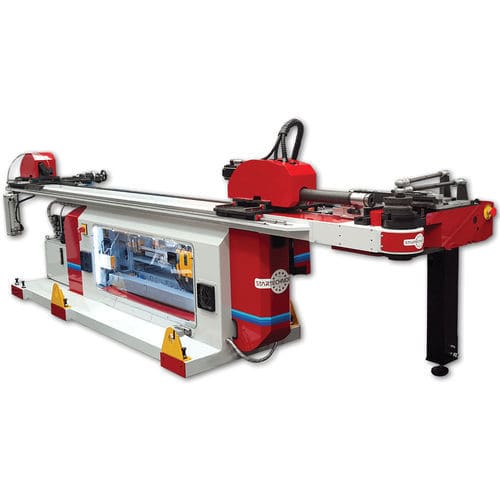

Hydraulic bending machine EvoBend series

electrictubeCNC

EvoBend is a tube bending line created to combine price, quality and design, in order to offer the right solutio for automation levels up to 3 controlled axes. Compact dimensions and capability up to Ø 80mm make it a perfect entry-level machine for those who enter the world of tube bending machines or want to build a dynamic and productive bending job-shop. Main features Calandering with boost function. Sturdy structure in electro-welded carpentry with integrated electrical cabinet. System management software (S.T.I.) with a simple, intuitive interface and 3D display of the bended tube. Up to 3 brushless electric axes, controlled by CNC. System compliant with CE requirements thanks to safety systems with laser barriers and protections. Separate and ergonomic control pulpit with 14”/ 21”multitouch video according to the configuration. The plant can be equipped with hydraulic unit for cutting, punching and marking. Safety area adjustable according to different bending lengths. Remote assistance available. Quick interchangeability of the bending system: compression, generation and calandering. Advantages Wide range of profiles (round, square and special profiles). Absolute position repeatability due to irreversible toggle locking of with absolute positioning. Bending of complex shapes thanks to limited dimensions of the bending head. Bending head with interchangeable passing shaft in order to use preexisting tools. Excellent bending quality thanks to the wide range of accessories such as wiper die, shaped clamps, split bend die and mandrel lubrication system. Driver with regenerative systems with energy savings of up to 40%.
