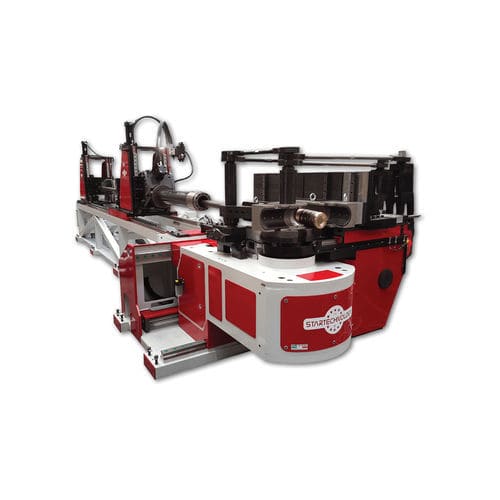

Hydraulic bending machine HeavyBend series

electrictubeCNC

The HeavyBend line is the right bending solution when extreme rigidity, structural strength and guaranteed repeatability are necessary. The bending head movements provides an easier loading of raw materials and unloading of the finished parts. The direct transmission of the bending axis ensures optimal results even in the presence of high torque requirements. Heavy Bend tube benders are also equipped with a DC Bus energy saving system with active regeneration of the electrical current, which guarantees energy savings of up to 40% of the absorbed powers. Main features Calendering with boost function. Sturdy structure in electro-welded carpentry with integrated electrical cabinet. System management software (S.T.I.) with a simple, intuitive interface and 3D display of the bended tube. From 1 to 7 axes brushless electric axes, controlled by CNC. System compliant with CE requirements thanks to safety systems with laser barriers and protections. Separate and ergonomic control pulpit with 14”/ 21” multitouch video according to the configuration. The plant can be equipped with hydraulic unit for cutting, punching and marking. Safety area adjustable according to different bending lengths. Remote assistance available. Quick interchangeability of the bending system: compression, generation and calandaring. Direct drive of the bending axis. Advantages Wide range of profiles (round, square and special profiles). Absolute position repeatability due to irreversible toggle locking of with absolute positioning. Bending of complex shapes thanks to limited dimensions of the bending head. Bending head with interchangeable passing shaft in order to use preexisting tools.
