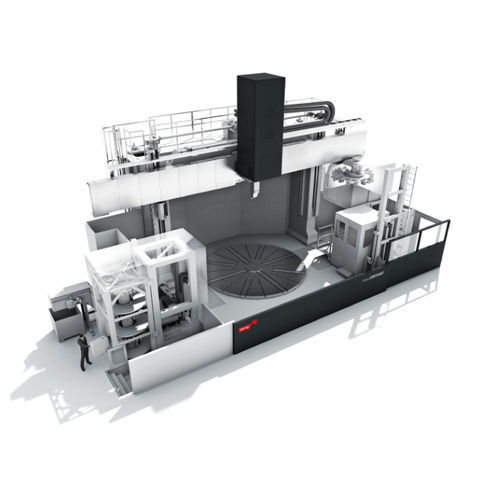

CNC lathe Dörries CONTUMAT VC series

vertical3-axisdouble-column

The Dörries CONTUMAT VC series, designed as a double column portal system, is ideal for larger swing diameters of 3,500 to 12,000 mm. The VC range combines all of the advantages of the VCE range with the ability to machine large scale components just as effectively. The positive construction properties of the smaller range are taken over here in correspondingly dimensioned main components. The range also provides high levels of flexibility by combining standard modules, providing the customer with a solution tailored to suit their individual needs. The closed portal construction of the double column vertical lathe guarantees high intrinsic rigidity, while the proven cast construction ensures excellent damping and thermo-stability. Thanks to these characteristics customers obtain a lathe that provides high machining accuracy, with a long service life. Palletizing Automatic work piece changing equipment reduces set-up down time with increased manufacturing flexibility. Tool magazines Dörries lathes offer flexible tool handling systems. The multifunctional disc magazin offers up to 72 pockets, the chain type magazine up to 100 pockets and the column magazine with double gripper unit up to 210 pockets. Head attachments A wide variety of head attachments are available. These could be angular milling heads, universal-swivel heads, facing heads or grinding spindles. Option boring, milling, grinding The machine can be adapted with a boring and milling drive of 37 kW. Also grinding operations are optinal possible. Main drive / C-axis drive The main drive is powered by one or two electrically preloaded drive units with asynchronous motors.
