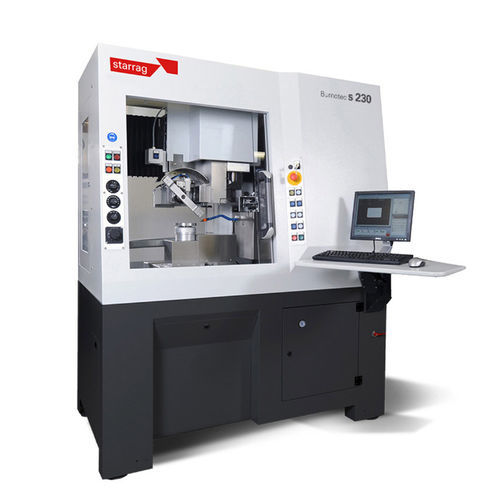

Finishing finishing machine Bumotec s230

machiningmillingCNC

s230 is an automatic solution for faceting and diamond finishing dials index. s230 production center allows the production of a wide variety on index in various metals. Contrasts of different visual effects are performed by the use of diamond tools or solid carbide tools. The complete solution for small and medium series for finishing index combines multiple operations on a single machine. Features Optical recognition and origin definition of blanks Diamond with the revolver toolholder Machining of LuniNova pockets and micromilling Simple programming interface on Windows A variety of automation systems are available to ensure a high level of autonomy in production The Tool Holder Tool holder magazine The 8 positions tool holder magazine allows the automatic tools loading in the vertical spindle for milling, machining contour or engraving. The loading process is done automatically by the pneumatic clamping. The production of complex parts or the use of brother‘s tools is possible. Diamond tool A wide variety of standard tools are available on the market for all types of forms. Tools preparation Tools preparation takes place outside the machine on a setting table. The measuring microscope allows quick and accurate mounting of the tools. Tools setting The lateral alignment of the tool is performed by micrometer screw adjustment and the tool height by an eccentric screw. Angular adjustment The fine adjustment of the cutting angles is performed by micrometer screws. Revolver tool holders 2 positions, ø 300 mm The use of a large diameter tool holder insures a high gloss finishing surface.
