Bench-top optical comparator HD400

horizontaldigital

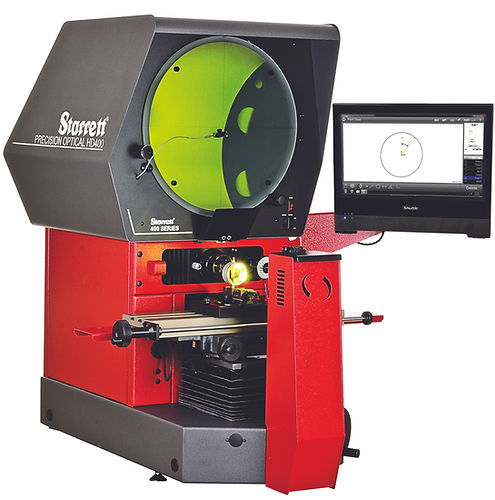

The HD400 is a dual lens optical comparator offering a two-lens mount allowing instant switching between two magnifications lenses or video camera adapter. The HD400 is equipped with a 16" (400mm) travel workstage as standard. Optional automatic edge detection or video edge detection removes operator subjectivity in locating edges of parts being measured. A bayonet style lens mounting system accepts a choice of six interchangeable lenses as well as our OV2 Zoom or TOV2 fixed telecentric magnification video camera systems. Motorized stage, fully automatic CNC controls and swing-away lamp house are all optional features. • 16" x 6" (400mm x 150mm) X-Y travel workstage • All metal construction with hard-anodized stage tooling plate • 16" (400mm) diameter screen • Dual-lens mounting system • Collimating condenser with yellow/green filter and provision to mount further accessories • Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes • LED profile and surface illumination • Fully retractable flexible duplex fiber optic surface illumination • Digital protractor for accurate angle measurements (1' resolution) via Q-axis readout • Helix adjustment for accurate thread form inspection • Available with MetLogix™ M1 tablet, M2 or M3 PC-based touch screen measuring software or Mx-Series digital readout system • Fine adjustment on all axes • Quick release mechanism on the X-axis • Six interchangeable fixed magnification lenses including 10x, 20x, 25x, 31.25x, 50x and 100x • Automatic optical edge detection • Automatic video edge detection (available only with OV2 or TOV2 video cameras and M3 software)
