Vision measuring system MVR 300 FOV

geometryfield of view (FOV)video

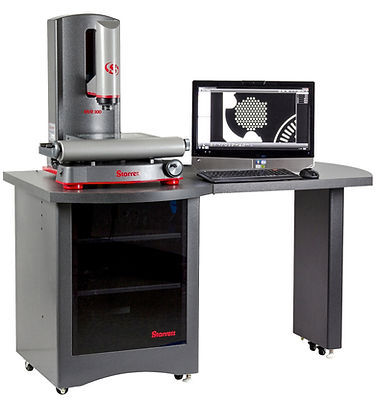

The MVR Manual Vision Metrology Systems are ideal when quick measurements for quality control are needed. They are available with dedicated zoom optics or a quick-change bayonet lens mount which accepts interchangeable zoom optics or telecentric lenses for micron-level resolution. With a maximum field of view (FOV) of 0.93" (24mm), and seamlessly integrated stage motion, the MVR 300 is capable of measuring parts with a length up to 12" (300mm). The operator interface is the MetLogix™ M3 software that displays a live video image of the part plus geometry tools and digital readings. The image of the part can be resized using zoom and measurements can be taken by simply touching a feature on the touch-screen monitor. MVR hardware features include a granite base for maximum stability, precision linear guides for smooth, accurate stage motion and a motorized Z-axis with variable speed control. • Z travel: 8" (200 mm) • Manual X-Y positioning via hand wheels • Motorized Z-axis positioning with variable speed control • MetLogix™ M3 metrology software • Video edge detection (VED) • Field-of-view (FOV) measurements integrated with stage motion • Renishaw scales for 20µin (0.5μm) of X and Y resolution • Color digital video camera • Collimated LED sub-stage illumination • Ring light LED surface illumination • Granite base • Dedicated or interchangeable telecentric optics • Quick-change bayonet lens mount for interchangeable telecentric optics • Interchangeable telecentric lens magnifications including - 0.3x, 0.5x, 0.8x, 1.0x, 2.0x and 4.0x • DXF/FOV option for automatic comparison to CAD files • Modular system workstation • Calibration standards
