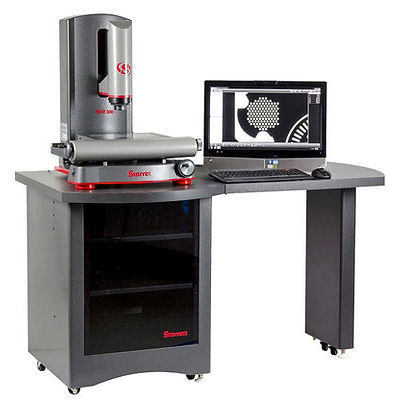

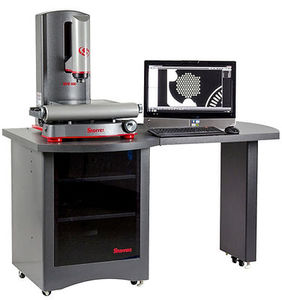

Vision measuring system MVR 300

field of view (FOV)camera-basedvideo

The MVR Manual Vision Metrology Systems are ideal when quick measurements for quality control are needed. They are available with dedicated zoom optics or a quick-change bayonet lens mount which accepts interchangeable zoom optics or telecentric lenses for micron-level resolution. With a maximum field of view (FOV) of 0.93" (24mm), and seamlessly integrated stage motion, the MVR 300 is capable of measuring parts with a length up to 12" (300mm). The operator interface is the MetLogix™ M3 software that displays a live video image of the part plus geometry tools and digital readings. The image of the part can be resized using zoom and measurements can be taken by simply touching a feature on the touch-screen monitor. MVR hardware features include a granite base for maximum stability, precision linear guides for smooth, accurate stage motion and a motorized Z-axis with variable speed control. • Z travel: 8" (200 mm) • Manual X-Y positioning via hand wheels • Motorized Z-axis positioning with variable speed control • MetLogix™ M3 metrology software • Video edge detection (VED) • Field-of-view (FOV) measurements integrated with stage motion • Renishaw scales for 20µin (0.5μm) of X and Y resolution • Color digital video camera • Collimated LED sub-stage illumination • Ring light LED surface illumination • Granite base • Dedicated or interchangeable 6.5:1 zoom lens • Quick-change bayonet lens mount for interchangeable zoom optics • Auxiliary lenses for zoom optics: 0.5x,1.5x and 2.0x • DXF/FOV option for automatic comparison to CAD files • Modular system workstation • Calibration standards • Thread measurement software module • Part fixtures and work holding devices
