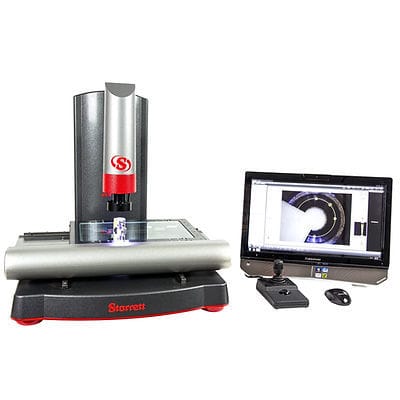

Vision measuring system AVR 300

field of view (FOV)video2D

The AVR CNC Automatic Vision Metrology Systems are ideal for repetitive measurements and automatic comparison to CAD files. Systems are available with interchangeable telecentric or dedicated zoom lenses for micron-level resolution and accurate field-of-view (FOV) measurements. With a maximum FOV of 0.93" (24mm), the AVR 300 is capable of measuring parts with a length up to 12" (300mm). The operator interface is the MetLogix™ M3 software that displays a live video image of the part plus geometry tools and digital readings. The image of the part can be resized using zoom and measurements can be taken by simply touching a feature on the touch-screen monitor. M3 software capabilities also include 3-axis measurements and 2D geometric constructs (points, lines, angles, rectangles, slots, blobs). Systems are also touch probe compatible. • Z travel: 8" (200 mm) • Full CNC X-Y-Z positioning or motorized manual positioning using a pendant with joystick and trackball • Metlogix™ M3 metrology software • Video edge detection (VED) • Field-of-view (FOV) measurements integrated with stage motion • Renishaw scales for 4μin (0.1μm) of X,Y and Z axis (available on select models) • Color digital video camera • Collimated LED sub-stage illumination • Ring light LED surface illumination • Granite base • Dedicated 6.5:1 or 12:1 CNC zoom optics • Interchangeable bayonet mount lenses for 6.5-1 manual zoom lens • 0.5x, 1.5x and 2.0x auxiliary lenses for zoom optics • Renishaw touch probe kit • 2 or 4 Bay touch probe change rack • Programmable darkfield quadrant LED surface illumination for zoom optics • DXF/FOV option for automatic comparison to CAD files • Modular system workstation
