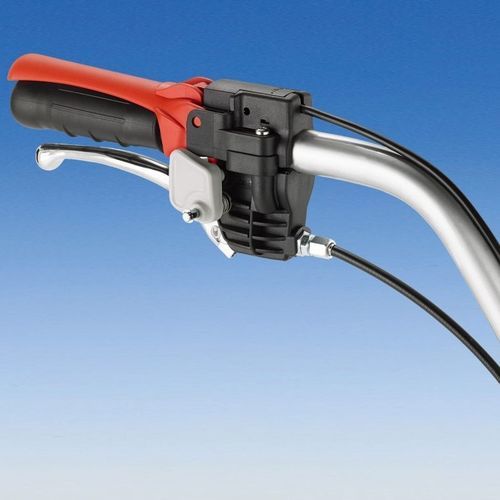

Handle control lever CL 11B

electronic

COMBINED ELECTRIC / MECHANICAL CONTROLS FOR PETROL MOTORSTOP, ENGAGED CLUTCH WITH REINFORCED LOCKING AND ORDER FORM MODEL CL 11B Characteristics: Control functioning: the levers are in dependent acting. The upper lever A is kept activated (lowered) if the lower lever B is in locking position. Application example: deadman device (engine switching off - lever A) combined with clutch lever control (lever B) Upper lever A electric contact: normally open or normally closed microswitch (see note) Lower lever B linear stroke in locking position (mm): 15 Lever A material and colour: red nylon; holder in black nylon Lever B material and treatment: zinc plated metal or chromium plated metal; holder in black nylon Assembly: on tubes Fastening type: holders coupling through screws Tube outer diameter (mm): 22 - 25 - 26 - 27 - 28
