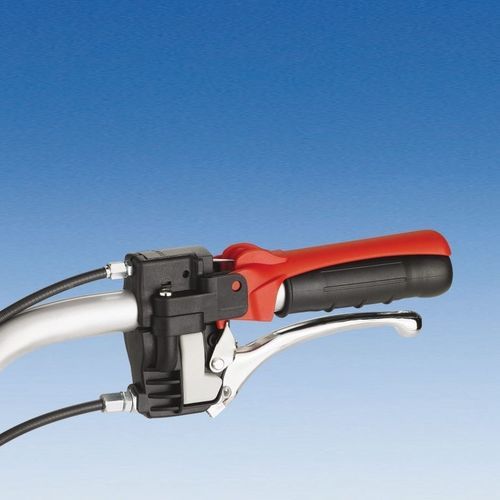

Handle control lever CL 2D

brakeplastic

COMBINED MECHANICAL CONTROLS FOR DIESEL MOTORSTOP, ENGAGED CLUTCH WITH STANDARD LOCKING AND ORDER FORM Characteristics: Control functioning: the levers are in dependent acting. The upper lever A is kept activated (lowered) if the lower lever B is in locking position. Application example: deadman device (engine switching off - lever A) combined with clutch lever control (lever B) Upper lever A linear stroke in direct acting (mm): 17 Lower lever B linear stroke in locking position (mm): 15 Upper lever A material and colour: red nylon; holder in black nylon Lower lever B material and colour / treatment: black nylon - zinc or chromium plated metal; holder in black nylon Assembly: on tubes Fastening type: holders coupling through screws Tube outer diameter (mm): 22 - 25 - 26 - 27 - 28
