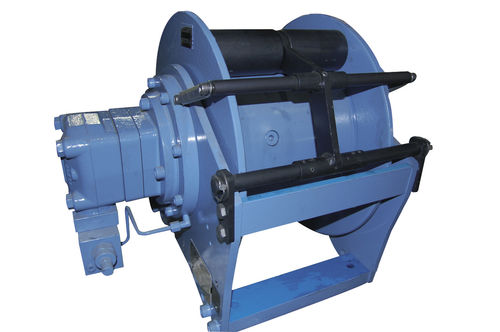

Hydraulic winch STliftingplanetarycompact
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- lifting
- Other characteristics
- planetary, compact
- Capacity
Min.: 509.9 kg
(1,124.1 lb)Max.: 13,256.3 kg
(29,225.1 lb)- Speed
Min.: 16,000 mm/min
(10.5 in/s)Max.: 42,000 mm/min
(27.6 in/s)
Description
ST Winches
from 500 daN to 13,000 daN
Very compact design, important line speed, this range is particularly suitable for mounting on cranes, gantries, etc...
Lifting application.
Orbit or piston hydraulic motor.
Negative multidisc brake automatically operated by a brake valve.
Oil bath lubricated planetary gearbox integrated into the drum.
