Hydraulic winch Twin-Winch seriesmechanicalwire ropelifting
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, mechanical
- Type
- wire rope
- Application
- lifting, haulage, traction
- Other characteristics
- compact, double-drum, planetary, for military applications
- Capacity
70 t
(77.2 us ton)- Speed
6,000 mm/min, 6,700 mm/min, 8,000 mm/min
(3.9 in/s, 4.4 in/s, 5.2 in/s)- Cable diameter
16 mm, 18 mm, 22 mm, 26 mm
(0.63 in, 0.71 in, 0.87 in, 1.02 in)- Cable length
43 m, 51 m, 59 m, 65 m
(141'00" , 167'03" , 193'06" , 213'03" )- Pressure
170 bar, 200 bar, 205 bar, 210 bar
(2,465.64 psi, 2,900.75 psi, 2,973.27 psi, 3,045.79 psi)- Flow
40 l/min, 75 l/min
(10.57 us gal/min, 19.81 us gal/min)
Description

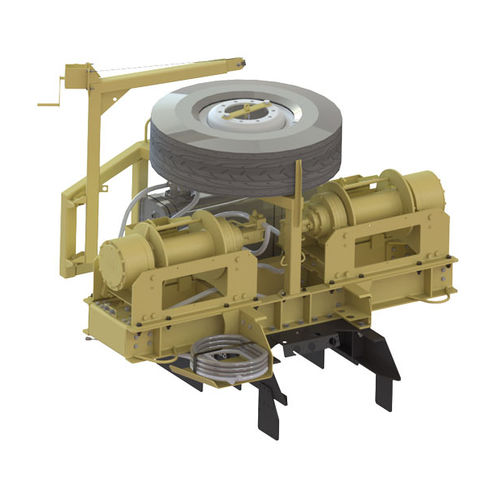

The twin winch solution is a complete hydraulic winch system specially designed to be fitted at the rear cabin of recovery Trucks.
Hydraulic unit for twin winch
• Fully equipped hydraulic unit.
• Oil tank, hoses, pump, control valves, etc.
Mechanical accessories for twin winch
• Spare wheel support with hoist of 300 daN.
• Access Lader.
Winch:
• Orbital hydraulic motor.
• Planetary gearbox oil bath lubricated.
• Negative hydraulic multi-disk brake.
• Heavy duty Pressure roller.
• Military Roller Fairleads.
Chassis:
• Bolted and welded heavy duty compact chassis.
• Lifting rings.
Options available on twin winch
• Cabin switch.
• Air cooling system.
• Variable speed.
• Complete system.
• Improved design for better compactness.
• Easy mounting and maintenance.
• Completely adaptable to any prime mover chassis.
