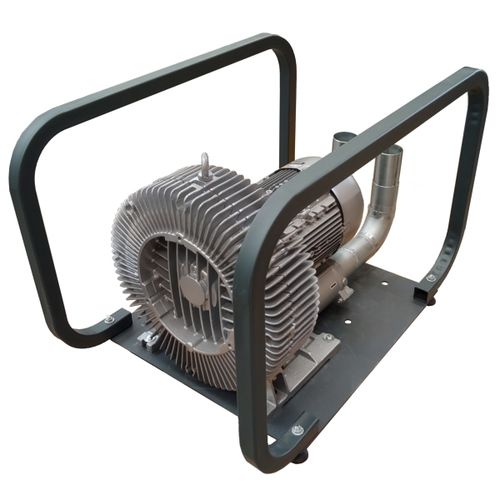

Air blower SAS120
side-channelfor vacuum230V / 50Hz

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Applications
for vacuum
Voltage / frequency
230V / 50Hz, 400 V / 50 Hz
Norms
IEC 60034-1
Energy class
IE1
Other characteristics
ATEX
Flow

1,010 m³/h
(35,667.813 ft³/h)

Operating pressure

260 mbar
(3.771 psi)

Nominal power

12.5 kW
(16.995 hp)

Sound level

77 dB

Weight

146 kg
(321.87 lb)

Length

99 cm
(38.98 in)

Depth

65 cm
(25.6 in)

Height

63 cm
(24.8 in)

Description

The Standard blowers offer an economical alternative compared to premium blowers. The energy efficiency is lower as well as the overall performance which is 10% less. Although, if price matters, standard blowers have an unbeatable price to performance ratio. The standard blowers fulfil the DIN EN 60034 and the IP55 protection standard. They are all certified as IE1 “standard efficiency”. The chasing is made of cast iron and the impeller in lightweight aluminium. Silenced inside, built-in PTC resistor, they are delivered on metal frame with anti-vibration dampers and adjustable feet. Technical Data Airflow @150mBar: 760 m³/h Connection Voltage: 230VΔ/400VY Connection Consumption: 48AΔ/28AY Resistance class: IP55
