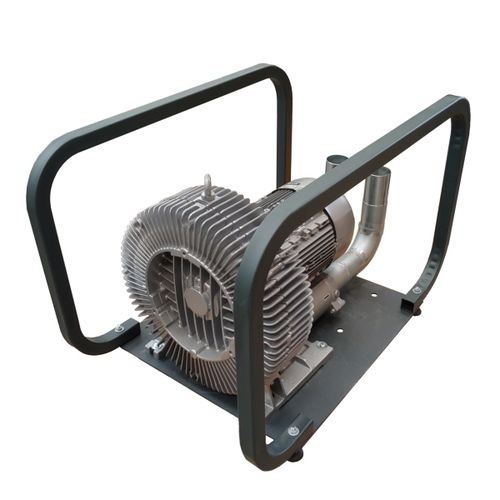

Air blower SAS075
side-channelfor vacuum230V / 50Hz

Add to favorites

Compare this product

Go to the Starvac website for more information

Characteristics

Type: air
Technology: side-channel
Applications: for vacuum
Voltage / frequency: 230V / 50Hz, 400 V / 50 Hz
Norms: IEC 60034-1
Energy class: IE1
Other characteristics: ATEX
Flow: 670 m³/h
(23,660.83 ft³/h)
Operating pressure: 260 mbar
(3.771 psi)
Nominal power: 7.5 kW
(10.197 hp)
Sound level: 74 dB
Weight: 100 kg
(220.46 lb)
Length: 99 cm
(38.98 in)
Depth: 65 cm
(25.6 in)
Height: 63 cm
(24.8 in)

Description

The Standard blowers offer an economical alternative compared to premium blowers. The energy efficiency is lower as well as the overall performance which is 10% less. Although, if price matters, standard blowers have an unbeatable price to performance ratio. The standard blowers fulfil the DIN EN 60034 and the IP55 protection standard. They are all certified as IE1 “standard efficiency”. The chasing is made of cast iron and the impeller in lightweight aluminium. Silenced inside, built-in PTC resistor, they are delivered on metal frame with anti-vibration dampers and adjustable feet. Technical Data Airflow @150mBar: 425 m³/h Connection Voltage: 230VΔ/400VY Connection Consumption: 29AΔ/16.7AY Resistance class: IP55
