Air blower SAP055
side-channelfor vacuum230V / 50Hz

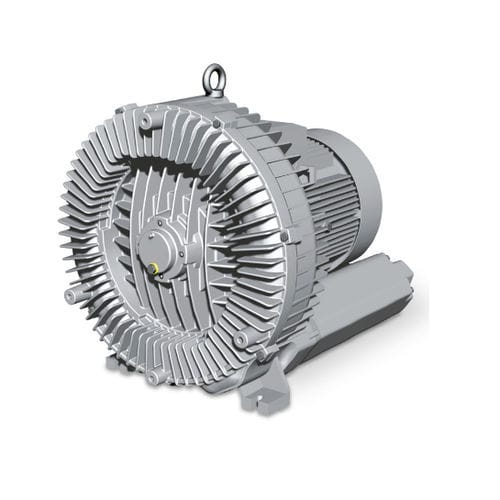

Air blower - SAP055 - Starvac - side-channel / for vacuum / 230V / 50Hz

Air blower - SAP055 - Starvac - side-channel / for vacuum / 230V / 50Hz - image - 2

Add to favorites

Compare this product

Go to the Starvac website for more information

Characteristics

Type: air
Technology: side-channel
Applications: for vacuum
Voltage / frequency: 230V / 50Hz, 400 V / 50 Hz
Norms: IEC 60034-1
Energy class: IE3
Other characteristics: ATEX
Flow: 550 m³/h
(19,423.067 ft³/h)
Operating pressure: 300 mbar
(4.351 psi)
Nominal power: 6.3 kW
(8.566 hp)
Sound level: 72 dB
Weight: 150 kg
(330.69 lb)
Length: 99 cm
(38.98 in)
Depth: 65 cm
(25.6 in)
Height: 63 cm
(24.8 in)

Description

Premium side channel blowers are powered by Siemens IE3 motors, featuring the highest possible energy efficiency. They are the most reliable and durable blowers on the market and are granted 20.000 hours without any fail or maintenance cost. Even after this time, the only consumable part are the bearings, that can be easily changed. For this reason, the premium blowers are basically maintenance-free. Available on stock in three different sizes they can cover the widest application field with short delivery times. All blowers are DIN EN 60034 proven and fulfil the IP55 protection standard. A built-in PTC – Thermistor checks the internal temperature of the motor in real time and emergency stops him in chase of overheating. On request also a vibration sensor to check the status of the bearings. Premium blowers are Made in Germany. The chasing is made of cast iron and the impeller in lightweight aluminium. Silenced inside, they are delivered on metal frame with anti-vibration dampers and adjustable feet. Technical Data Airflow @150mBar: 375 m³/h Connection Voltage: 230VΔ/400VY Connection Consumption: 20.4AΔ/11.8AY Resistance class: IP55
