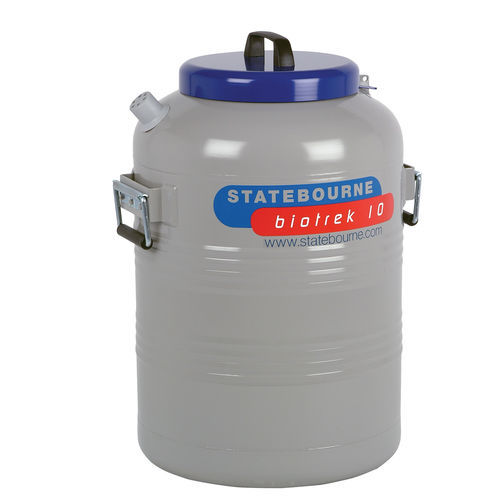

Sample Dewar Biotrek 10

for liquid nitrogenstoragealuminium

Transportable dry-shippers for the safe movement of valuable samples at near LN2 temperature. Conforms to IATA Shipping Regulations 202 Rugged & Durable Blood Stem Cell Bags & Cryobox storage No LN2 Spillage Dry Shippers Datalogging Security Dewars for shipping samples in ultra cold conditions during transit The Biotrek 3 and 10 Dewars are for shipping samples in ultra cold conditions without the dangers of releasing liquid nitrogen during transit. Internally both Biotreks contain a special cryo-absorbant material which locks in liquid nitrogen to ensure that although any samples held are not immersed in liquid nitrogen they are close as possible to liquid nitrogen storage temperatures. The Biotrek 10 will hold up to 5 x 100 cell cryoboxes in a specially designed rack. A temperature Logger Alarm can be fitted to travel with the Biotrek 3 or 10 unit to provide a continuous record of transit temperature. A wide range of Biological specimens may be held in the Biotrek 3 while the Biotrek 10 can also accommodate blood stem cell bags because of the extra wide neck and internal configuration. The cryo-absorbant will hold the liquid nitrogen within the vessel no matter what orientation the Biotrek may be during shipping. A carrying bag for the Biotrek 3 is available for easy transport. A shipping case is available for both the Biotrek 3 and the Biotrek 10 Static Evaporation Rate (l/day) 0.7 Static holding time (days) 18 Field Working Time (days) 11 Neck Diameter (mm) 216 Overall Diameter (mm) 408 Vial Capacity (canisters) 510 Vial Capacity (cryoboxes) 500 Pall Cord Blood Bag (cassettes) 20
