Laboratory Dewar Cryostor 400

for liquid nitrogenstoragestainless steel

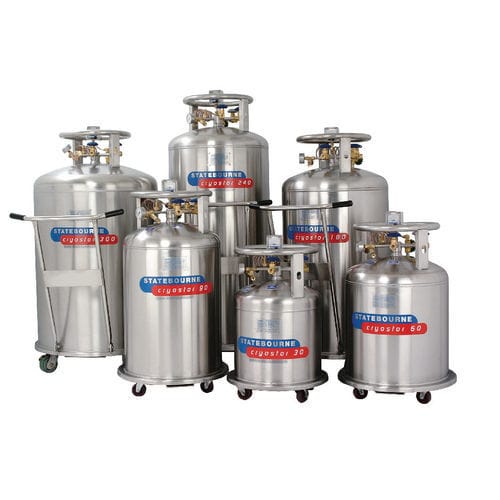

Stainless steel self-pressurising dewars for storage and dispensing liquid nitrogen. Automatic pressure regulator Twin fill / decant valves Heavy duty castors Electronic indicator Tow bar handles PED compliant & 97/23/EC Up to 3 Bar G High performance cryogenic liquid storage & dispensing for the laboratory The Cryostor Series is the latest innovation in high performance cryogenic liquid storage for the laboatory with units available from 30 to 500 litres capacity. All Cryostors are equiped with a safety dispensing head incorporating fill, vent and dispense valves, safety reliefs, pressure gauge and an integral pressure build vapouriser with automatic pressure regulation. Stainless steel construction provides the durability to safely withstand the harshest working environments while offering lower evaporative losses when compared to traditional ‘liquid cylinders’. All units are equipped with an electronic level guage which gives an accurate reading of dewar contents at the push of a button. For mobility, all Cryostors up to 300 litres are fitted with heavy-duty castor wheels and the larger units (180, 240 and 300 litre sizes) are equiped with a pull-along towbar handle. • All welded stainless steel construction • All models equipped with heavy-duty castors up to 300 litre size • The 400 and 500 have a pallet truck base • Tow-Bar handles (180 to 300 litre models) • Automatic pressure build circuit fitted • Colour-coded, labelled valves for easy identification • Twin liquid fill/decant valves as standard • Electronic contents indicator fitted Evaporation Rate (%/day) 0.51 Design Code PD: 5500 CE M.A.W.P. (barG) 32 Base Diameter (mm) Footprint dimensions 784sq4
