20.1″ Color Active Matrix Liquid Crystal Display (AMLCD)
High Resolution: 1600 x 1200
Attractive Flush Rack Mount
Convenient Front Controls
Designed and Built to Military Standards
Anti-Reflective Protective Window (Standard)
Wide Viewing Angle ±89° (Typical All Directions)
HD-15 (VGA) or 5-BNC (VGA), DVI-D, Optional – NTSC (BNC), S-Video (S-Video Connector)
Auto Ranging Internal AC Power Supply (Optional)
Flicker Compensation for Display of Sonar Acoustic Data (Optional)
1 Year Limited Warranty, Extended Warranty available

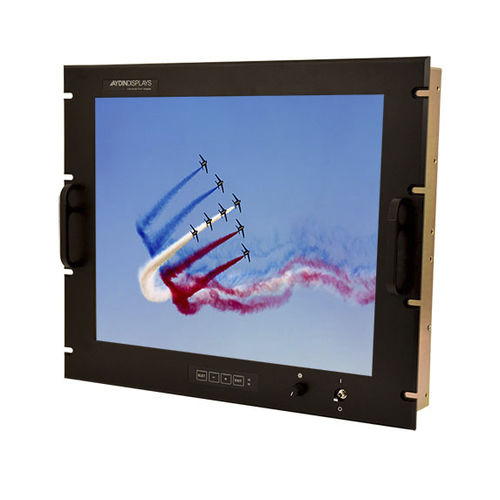

The Aydin Model 4520R5C is a high performance 20.1″ Rack Mount Military Display, designed for use in severe environments as encountered by the military. The 4520R5C is designed to meet a wide variety of applications (airborne and ground mobile), which requires a solid mechanical design to protect the display against shock, vibration, and temperature extremes.
The Aydin Model 4520R5C is packed with features including, Picture-in-Picture (PIP), RS-232 Interface for Remote Control of Unit (DB-9 Connector), High Resolution and much more.
Sparton Rugged Electronics under the Aydin brand provides a wide variety of Defense / Military LCD Displays that are designed for some of the harshest conditions in military scenarios- land, air and on water. Many of such models are designed for the COTS military market place or ask how our custom displays can meet your specialized needs.
