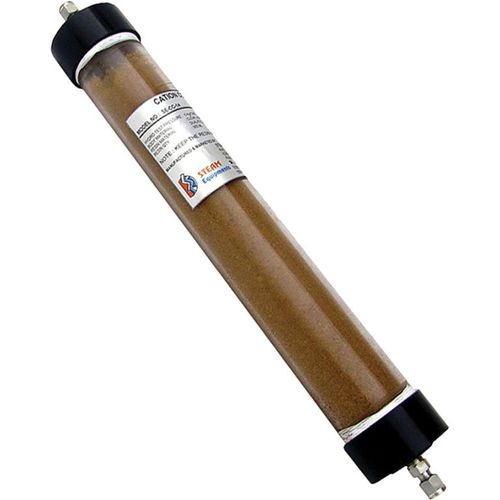

Measuring column Cation

An ion-exchange resin or ion-exchange polymer is a resin or polymer that acts as a medium for ion exchange. The cation resin replaces contaminating cations such as Ca++, Mg++, Na+, NH4+, and amines in the sample with hydrogen ions. The hydrogen ions exchanged for the other cations in the sample increase the conductivity contributed by the contaminant salts of mineral acid anions listed above by 3 or 4 times. Applications Resin column is used for the measurement of cation conductivity. Features • Slim –Design for better performance • Colour indicating type • Optional quick-disconnecting kit • Corrosion resistant • Designed for Max Pressure up to 6 Bar • Design Temperature: 80o C • Easy replacement of resin & Maintenance free • Supplied more than 2000 Cation Columns all over India Benefits • Corrosion resistant • Colour indicating type resin • Easy replacement of resin Specifications • Pipe size: 60 mm OD • Height: 300 mm • Material: Clear acrylic • Quantity: 900 ml • End connection: ¼” OD • Flow rate: 30 LPH
