Wastewater analyzer 6000

phenolmonitoringlaboratory

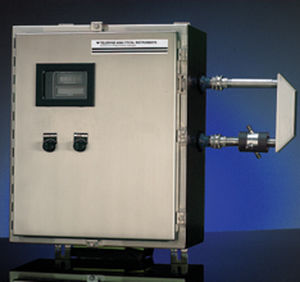

Teledyne’s Series 6000 Microprocessor Controlled Ultraviolet Photometer is designed to provide continuous on-line analytical data of critical process conditions and eliminate time consuming laboratory analysis. This analyzer can be configured to measure at any wavelength within the ultraviolet or visible portions of the electromagnetic energy spectrum. Since numerous gases and liquids have a useful absorbance peak in the ultraviolet region, a wide variety of applications are possible. Advantages • Dependable microprocessor-controlled analysis • Auto calibration and auto ranging • Continuous real time analysis • Eliminates time-consuming lab analysis Features • Microprocessor based, high resolution, ultra stable elevvctronics (no potentiometers) • Three user-selectable ranges • Signal & Range ID output: 0-1 VDC and 4-20 mADC (isolated) • Programmable auto ranging • Range ID contacts (quantity 4) Form A normally open contacts, 3A@250 VAC resistive • Two adjustable concentration alarm set points with programmable relay function Form C contacts, 3A@250 VAC resistive • Programmable auto calibration with mode ID Form A normally open contacts • Remotely operated calibration (customer supplied valves and 24 VDC signal) • Self diagnostics with Form C failure contacts • Full duplex RS232 communication link • Power: 115/230 VAC 50/60 Hz Typical Applications • Oil in refinery waste water condensates streams • CL2, HC, SO2, H2S in stack gases or Liquid Streams • Chemical reaction monitoring • Product Color monitoring liquids • Petrochemical process control • Quality assurance • Phenol in water • Hazardous waste incineration • CLO2, Hypochlorite monitoring • F2 monitoring
