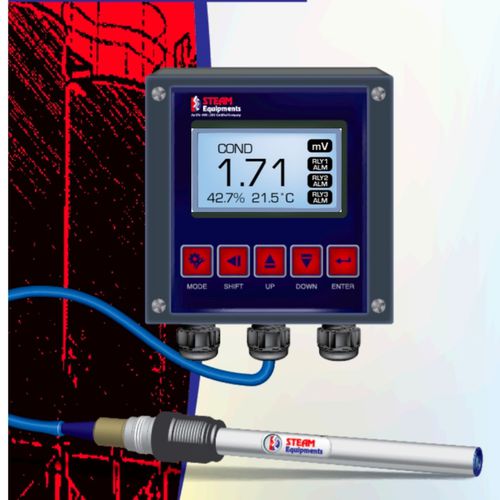

Digital conductivity sensor UVCON-COND

CONDUCTIVITY SENSOR : SEPL make sensor can be directly used together with various conductivity meters as a complete set. • Plug-in connection. • Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread. • Please note the value of the thermistor when order: Pt100. Pt1000, 2.252K, 10K, 22K etc. •Cell Constant 0.01, 0.1, 1 CONDUCTIVITY/TDS TRANSMITTER SPECIFICATIONS - Functions :EC - Resistivity - Salinity - TDS Measuring range : 0-20 µS ,0-200 µS, 0-2000 µS Resolution : - 0.01/0.1/1 - 0.01 - 0.01 - 1 Accuracy : - ±1%F.S. - ±1%F.S. - ±1%F.S. - ±1%F.S. Temp. compensation : Pt 1000/NTC30K Temp. range : -10.0 to +130.0℃ Temp. compensation range : -10.0 to +130.0℃ Temp. resolution : 0.1℃ Temp. accuracy : ±0.2℃ Cell constant : 0.001 to 20.000 Ambient temperature range : 0 to +70℃ Storage temp. : -20 to +70℃ Display : Back light, dot matrix EC current output1 : Isolated, 4 to 20mA output , max. load 500Ω Temp. current output 2 : Isolated, 4 to 20mA output , max. load 500Ω Current output accuracy : ±0.05 mA RS485 : Mod bus RTU protocol Baud rate : 9600/19200/38400 Maximum relay contacts capacity : 5A/250VAC,5A/30VDC Data logging capacity - 500,000 Protection : IP65 Power supply : From 90 to 260 VAC, power consumption < 5 watts Installation : panel/wall/pipe installation
