Turbidity sensor

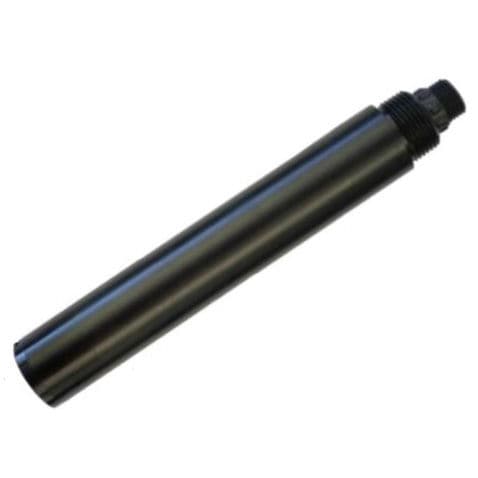

TURBIDITY SENSOR- SEPL make turbidity sensor use fiber optic technology to provide superior repeatability and stability, and are less susceptible to ambient light. The automatic cleaning brush with the sensor can effectively eliminate air bubbles and reduce the influence of contamination on the measurement. It has a longer maintenance period and maintains excellent stability for long-term online use. Features - • - Digital sensor, RS-485 output, support MODBUS • - With automatic cleaning brush to prevent contamination and eliminate air bubbles • - Strong anti-interference ability, free from ambient light and chromaticity • - 90° scattered light principle, with fiber optic technology for better repeatability DIGITAL TURBIDTY SENSOR - - Measuring Principle : 90° Scattered Light Measuring range : 0-1000 NTU Protection IP : IP68 Precision : 0.1 NTU Resolution :<5 % or 0.3 NTU Sensor Interface : Support RS-485, MODBUS protocol Power supply : 5-12 V DC, current <50 mA Assembly : Input type Dimensions : Φ 45 *175.8 mm Probe Cable Length : 10 Meters, can be customized Housing Material : POM Optical Window : Optical Fiber TURBIDTY TRANSMITTER - - DIMENSION : 145(L)*125(W)*162(H) WEIGHT : 1.3 KG Protection IP : IP65/NEMA4X Storage Temperature : -20 to 70°C Operating Temperature : -15 to 60°C Power supply : 85-265 V AC or 12 V DC Output : Two Channel 4-20 mA analog output Digital Output : RS 485 MODBUS
