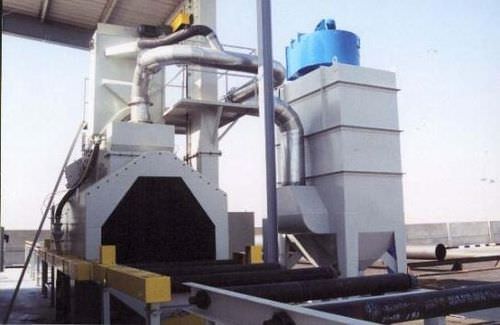

Roller conveyor shot blasting machine 18 kg/h | 4W - 1.5 x 1.0

for metal4-wheel

Featured here is our most popular shot blasting machine for the general fabricator and painting contractor. This machine can be used in a factory or installed on a construction site. The pitless design allows for a simple foundation and ease of installation. A PLC control is fitted to make the machine operation as simple as possible. This machine is ideal for the general fabricator and can be used a section blasting machine, plate blasting machine or pipe blasting machine Specification Maximum Beam Size : 910 mm Maximum Plate Width : 1500 mm Maximum Length : 12000 mm Maximum Pipe Dia. : 914.4 mm Blast Wheels : 4 Blast Wheel Power : 18.5 kW Power Required : 100 kW Passline Height : 1250mm (Pitless) Conveyor Speed : 0.5 to 5 m / min Dust Collector Size : 8000 CFM Floor Space Required : 6m x 30m Maximum Height : 6.0m Initial Fill of Abrasive : 4000 kgs PRODUCTION DATA Estimated Abrasive Consumption 18 kgs per blasting hour Estimated Production SA 2.5 50 - 70 m sq. per hour Estimated Line Speed SA 2.5 0.8 to 1.0 linear m / min
