Wall-mounted fan 01871.0-30
filteraxialcooling

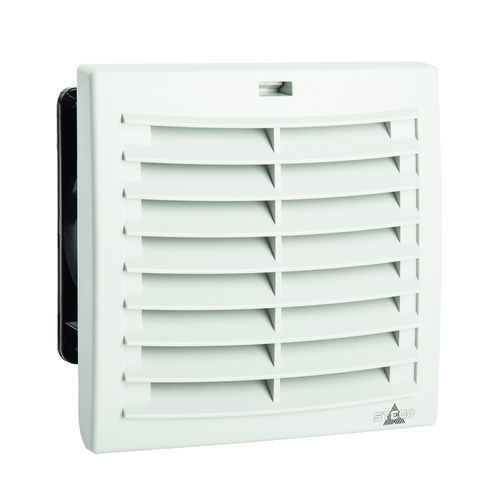

Wall-mounted fan - 01871.0-30 - STEGO - filter / axial / cooling

Wall-mounted fan - 01871.0-30 - STEGO - filter / axial / cooling - image - 2

Add to favorites

Compare this product

Go to the STEGO website for more information

Characteristics

Type

wall-mounted, filter

Configuration

axial

Function

cooling

Air flow

Max.: 62 m³/h
(2,189.509 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

Filter fan FPI size 2 (124 x 124 mm) for air conditioning enclosures and casings. Configuration: FPI - airflow direction "in" (standard version: blowing). Optimum air conditioning for your enclosure: The Filter Fan Plus blows cooler outside air into the enclosure. The warmer air inside the enclosure is discharged via the exit filter. The resulting air flow cools the enclosure and protects the components from overheating. Only one filter mat required (on the filter fan) Easy installation thanks to installation frame with twist locks Effective air circulation Accessories: Hose-proof hood to increase the protection type to IP5
