Wall-mounted fan 01882.0-00
filteraxialcooling

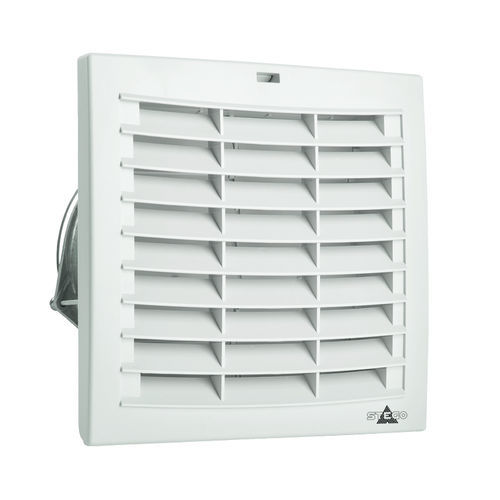

Wall-mounted fan - 01882.0-00 - STEGO - filter / axial / cooling

Wall-mounted fan - 01882.0-00 - STEGO - filter / axial / cooling - image - 2

Add to favorites

Compare this product

Go to the STEGO website for more information

Characteristics

Type

wall-mounted, filter

Configuration

axial

Function

cooling, suction

Air flow

Max.: 313 m³/h
(11,053.491 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

Filter fan FPO size 3 (176 x 176 mm) for air conditioning enclosures and casings. Configuration: FPO - airflow direction "in" (design: intaking). Optimum filter fan for enclosures: The Filter Fan Plus draws the heating air from the enclosure to the outside. Cooler outside air enters the enclosure via the inlet filter. The air flow protects the electrical components. Filter fan with self-closing flaps as air outlet Only one filter mat required (on the inlet filter) Easy installation thanks to installation frame with twist locks Effective air circulation Accessories: Hose-proof hood to increase the protection type to IP56
