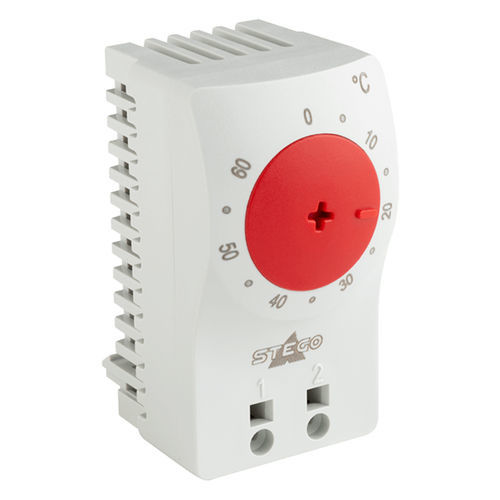

Mechanical thermostat KTO 111 NCDIN railplastic
Add to favorites
Compare this product
Characteristics
- Heating technology
- mechanical
- Contact type
- NC
- Mounting
- DIN rail
- Material
- plastic
- Protection level
- IP20
- Applications
- for electrical cabinets
- Temperature
Min.: -45 °C
(-49 °F)Max.: 80 °C
(176 °F)- Switching power: current
16 A
- Switching power : voltage
250 V
Description
The mechanical NC thermostat opens when the temperature rises and is used to control heaters or to switch signal transmitters when the temperature undershoots. The use of push-in terminals prevents the supply lines from coming loose.
• - Fixed supply lines thanks to push-in terminals
• - Time saving thanks to tool-free connection
• - Large adjustment wheel enables convenient adjustment
• - Optimised air inlets
• - Can be used at altitudes of up to 5000 metres
