CAD part inspection comparison software INSPECTplus

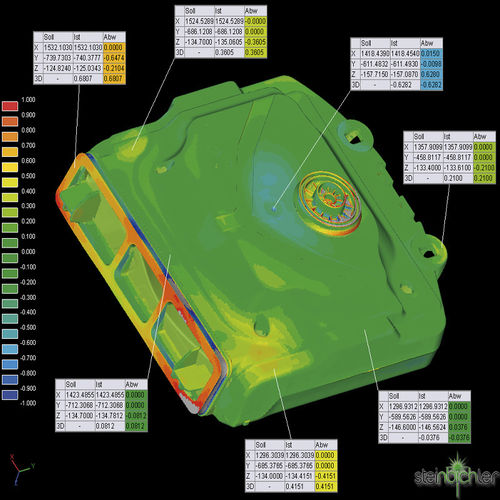

INSPECTplus - Inspection software With the INSPECTplus inspection software, Steinbichler Optotechnik has developed an easy-to-use inspection software which offers the user a wide range of functions for the dimensional evaluation of data sets. The data comparison (CAD data, measurement data) can be performed either online or any time later. The measurement results give the user valuable basic information for a wide application range, e.g. for possible corrections of tool settings, or for the localization of wear and tear areas on a tool which may require reconditioning. The comprehensive comparison methods (e.g., surface comparison with user-selectable false-color plots, comparison of sections and borderlines with needle diagram) provide a highly efficient tool for quality control which pairs high performance with ease of use. For the alignment of the measurement data, the user can choose a suitable method from a comprehensive state-of-the-art functionality range. Among the variety of available alignment methods, the additional function for fully automatic alignment enables the user to save valuable time in inspections involving recurring measurements or automated processes, thus providing exceptional ease of use. Any inspection process can be automated using user-defined Visual Basic macros. Including protocol generation and comprehensive editing functions for the documentation of the measurement results, INSPECTplus is a compact, versatile and easy-to-use inspection software package suitable for a wide range of applications.
