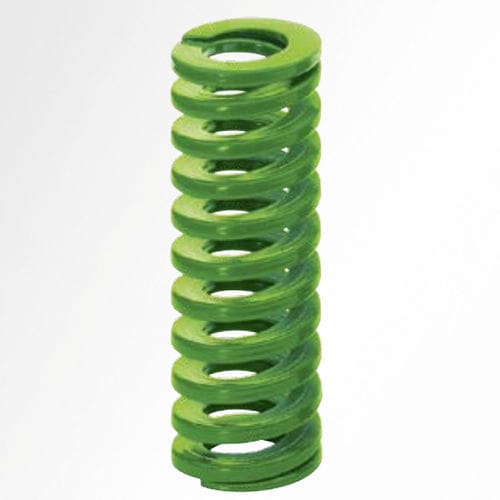

Compression spring SZ8010 series
wiresteellight-duty

Compression spring - SZ8010 series - Steinel SAS - wire / steel / light-duty
Compression spring - SZ8010 series - Steinel SAS - wire / steel / light-duty
Compression spring - SZ8010 series - Steinel SAS - wire / steel / light-duty - image - 2
Add to favorites
Compare this product


Characteristics

Function
compression
Type
wire
Material
steel
Applications
light-duty
Outer diameter

Max.: 63 mm
(2.5 in)

Min.: 10 mm
(0.4 in)

Force

Max.: 4,660 N

Min.: 75 N

Extended length

Max.: 122 mm
(4.8 in)

Min.: 10 mm
(0.4 in)

Description

SZ8010 System spring light load, identification colour green ISO 10243 Material Profiled valve spring steel wire (52SiCrNi5) Spring type Helical compression spring Wire cross-section rectangular Note Spring is set, closed and rectangular ground
