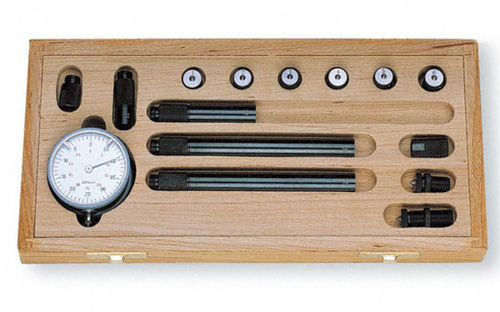

Measuring gauge 4400/4410

For measuring the change in the distance between the throws of a crankshaft that has been built in and set in motion, as a measure for the alignment of the bearings. Technical Data • for measurement of the change of the crank web spacing of the built-in rotating crankshafts as a measure for the alignment of the bearings • positioning of the instrument in centering bores or directly on the webs • high positioning force • low inversion error • movement on jewels • angle of centering points 90° • reading 0.1 mm • delivery in wooden case • set consisting of: didal gauge, extensions, measuring tips to be screwed intzten Kurbelwelle als Maß für die Fluchtung der Lager Benefits • High positioning force • Low inversion error • Movement on jewels • Flexibly applicable because of positioning of the instrument in centering bores or directly on the webs Application • for change measurements of the crank web spacing of the built-in rotating crankshaft as a measure for the alignment of the bearings
