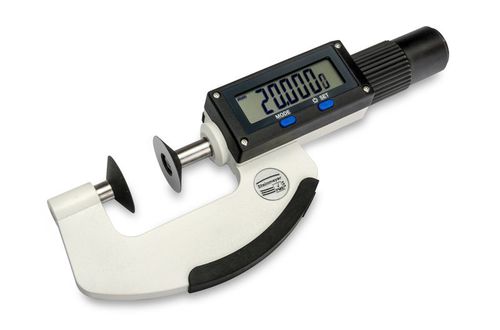

Digital micrometer for measuring gear tooth widths with 30 mm direct measuring range and 2 mm spindle thread pitch.
Technical data
• Switchable resolution 10 µm, 1 µm, 0,5 µm; 0,0005“, 0,00005“, 0,00002“
• Spindle pitch 2,0 mm
• Spindle type non-rotating
• Measuring force by ratchet approx. 7 N
• Disc-diameter 25 mm
• Hight 7 segment display 12 mm
• Interface Proximity (Sylvac)
• Protection class IP65
• Software functions MIN MAX, MIN-MAX Mem., HOLD, preset with rotary knob
• Errorlimit MPE < 3 µm
Benefits
• Measuring range 30 mm
• Linear measuring system, directly within Abbe measuring axis
• Reversabale counting (in case of ingoing spindle the display value increases)
• (Non-rotating) Floating spindle for high repeat accuracy, 2 mm pitch
• Switchable resolution of 0.5 µm, 1 µm & 10 µm
• Preset adjusting via spindel possible
• Protection class IP65
• Inch conversion metric mm / inch
• Interface Proximity (Sylvac) for data transfer to measuring computer, wireless or cable
• Input and saving of PRESET and tolerance values
• Min- / Max-value memory
