Tool setting touch probe KPE 30

measurementdigitalfor crankshafts

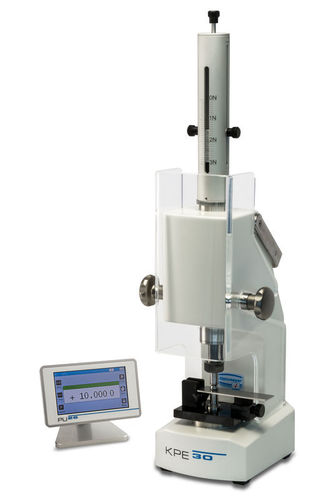

The small measuring device KPE 30 is suitable for quick and safe measurements of cylindrical and spherical components and for further work pieces at highest accuracy level, up to a size of 30 mm. Because of the stable and heavy base body of mineral casting external influences become eliminated to a high share. The compact design allows a flexible place of installation, no matter whether in the inspection laboratory or in a mobile use. By help of the additional accessories it is ideal for the calibration of pin gauges, plain plug gauges or threaded plugs. The twochannel display unit PU26 offers next to the variable indication modes also a communication port via USB or RS232 to succeeding PC systems. • Measuring range 0 - 30,1 mm • Total error* < 0,0002 mm (0,2 µm) • Repeatability < 0,00003 mm (0,03 µm) • Measuring system INVAR Tk 0,6 µm/m/°C; 20 µm division • Measuring force 3,0 N (adjustable 0,1 N to 3,0 N) • Total Weight 11 kg • Display Resolution 0,00001 mm (0,01 µm) Bar graph, Interpolation factor 2000 • Measuring channels 2 • Resolution total system 10 nm • Interfaces Sinus 1 Vss, RS-232C, USB as keyboard emulation Benefits • Long direct measuring range of 30 mm • Safe and extremely accurate measuring system by keeping the Abbè principle • Measuring results not influenced by operator • Reliable and repeatable measuring results • Ideal for mobile use • With display unit PU26 readable and external usable • Variable measuring force from 0,1 N to 3 N (optionally) • Selectable between fix measuring contacts, flat, ø 10 mm or adjustable and exchangeable measuring contacts, e.g flats ø 8mm • Support for adjustment of pin gauges and plain or threaded plug gauges
