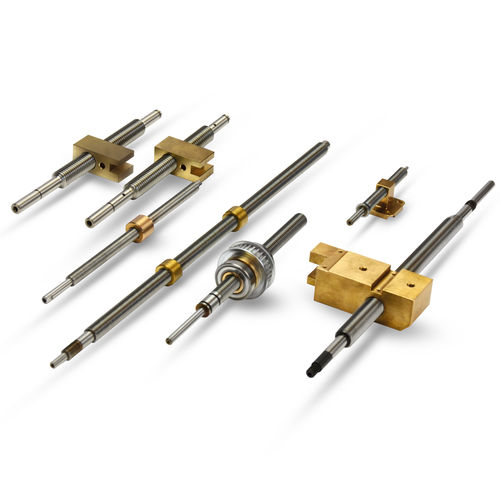

Custom lead screw
stainless steelbrassbronze

custom lead screw
custom lead screw
Add to favorites
Compare this product


Characteristics

Type
custom
Material
stainless steel, brass, bronze
Diameter

Max.: 100 mm
(3.937 in)

Min.: 3 mm
(0.1181 in)

Description

Customized Lead Screws Different material combinations, surface treatment or coating, individual design, scaling and labeling, cleaning processes, lubricant-free variants, etc. Short description • Accuracies: up to ISO tolerance class 1 • Spindle pitch: up to 0.2 mm • Spindle diameter: 3 - 100 mm • Spindle length: max. 300 mm • Optionally customizable: length, materials, pitches, profiles, accuracies, bearing seats, surfaces, hardening, tolerance classes, coatings, thread forms Application • Versatile in high-end applications in measurement technology, semiconductor technology, medical technology, microelectronics • Cost-optimized substitution of pneumatics / hydraulics • Customizable to application area and requirements Versions screw Material: sstainless steel, bronze, brass and others on request Shaft style: metric, whitworth, trapezoidal Shaft type: shardened, grinded Profiles: single-start, double-start and multiple-start Preload / Backlash: Preload, backlash free, axial backlash, radial backlash Versions nut Geometry: designed for installation in customer-specific assembly space Materials: brass, plastic, non-ferrous metal, steel and others on request Preload: Spring-loaded nuts for constricted axial backlash Additional options - Clean room ISO 14644-1 versions (up to class 1 on request) - Vacuum versions up to 10E-6 (higher on 'request) - Special coatings - Special lubrication or lubricant free - Documentation for aerospace (others on request)

Catalogs

No catalogs are available for this product.

See all of Steinmeyer Holding GmbH‘s catalogs
