XYZ positioning system 782350:001.26

linearwith DC motorlinear motor-driven

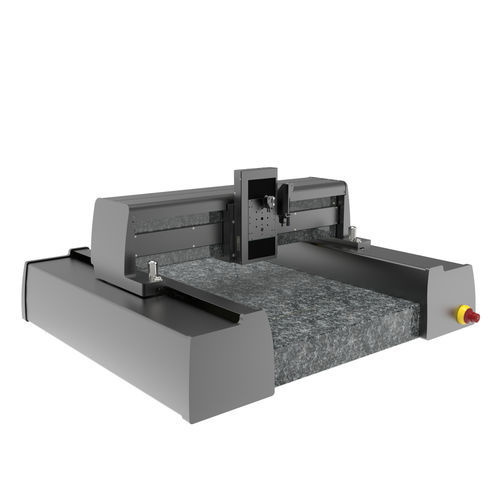

XYZ Universal Gantry Customizable • Ideal for high-precision, all-purpose tasks with overhead motions • Very large travel ranges of 600 x 600 x 100 mm • Reliable and consistent results due to high-precision positioning with repeatability up to 0.5 µm • Acceleration of throughput times of small samples with up to 2 m/s2, especially when frequent start-stop phases are required • Low maintenance and flexible 24/7 operation with air bearing under variable parameters The customized processing head or sensor on Z-axis moves extremely fast over the specimen carriers. Due to the large travel distances of up to 600 mm, high quantities can be processed or inspected. Due to the Gantry Design, integration into cycle lines and the lining up of several such gantries can be easily realized. Specifications: - Stroke: 600 x 600 x 100 mm - Z-axe for process heads up to 2 kg - Repeatability: 0.5 – ± 2 µm - Speed: 100 - 200 mm (XY) / 25 - 50 mm (Z) - Max. load: 20 N (Z) - Drive: linear motor (ironless), air bearing (XY) | Ball Screw, DC motor, Cross roller (Z) - Feedback: linear scale - Motion Controller: FMC-250/280, FMC-400/450, ACS, PLC integration Customized options: - Stackable system design - Adaptation of travels, length combination up to 1 m, cabling and control system - Base plate made of granite or aluminum - Special configuration for biotechnology, medical technology, pharma, semiconductor - Customization for synthetic, biological or living samples - Versions for clean room ISO 14644-1 class 6 (up to class 1 on request) - Immediate use with pre-configured controller incl. exemplary software
